The PM-400 is an electric tray designed for the transport of vegetable crates or any other type of load up to 200Kg.

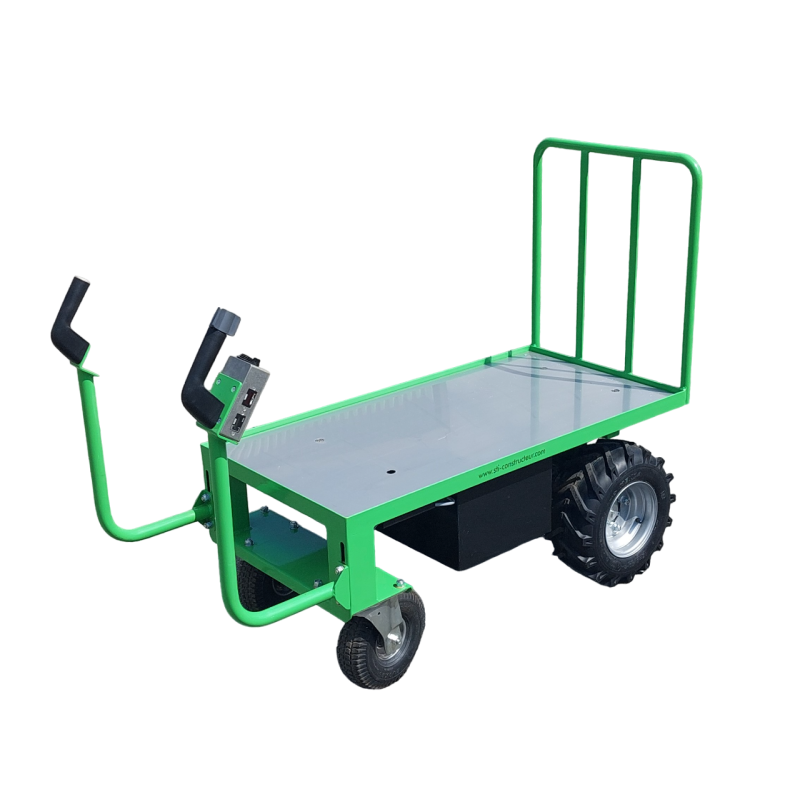

PM-400 - Market Gardening Tray
The PM-400 is an electric tray designed for the transport of vegetable crates or any other type of load up to 200Kg.
The PM-400 is an electric tray designed for the transport of vegetable crates or any other type of load up to 200 Kg.
It can carry up to 12 600x400 crates, thanks to its tilting motor, the wheels will always be in contact with the ground ensuring excellent traction in all circumstances.
The PM-400 can be adapted to your needs. (Non-standard modification contact us)
PHOTOS
PM-400
Data sheet
- Load capacity
- 200 kg on flat ground
- Length (mm)
- 1600
- Usable Length (mm)
- 1220
- Width (mm)
- 620
- Height (mm)
- 1070
- Tray height (mm)
- 545
- Wheelbase (mm)
- 860
- Turning radius (mm)
- 1450
- Vehicle weight with batteries (Kg)
- 160
- Type of driving
- Accompanying
- Engine
- 24V / 400 watts - direct current
- Transmission
- Mechanical differential
- Power Electronics
- CURTIS 24V / 90A dimmer
- Battery dimensions (mm)
- L. 323 / 1. 168 / h. 235
- Charger
- On-board with charge status indicator - 3 m long mains socket
- Output (Voltage / Current)
- 24V/10A
- Input voltage
- 85V to 264V
- Frequency
- 50 / 60 Hz
- Chassis
- Steel
- Surface treatment
- Sandblasting and powder coating
- Drive wheels
- 2
- Rims
- Sheet metal
- Dimension
- 16x6,50-8
- Front wheels
- Swivel
- Front wheel dimensions
- Ø 250 mm
- Type de pneu roues avant
- Agricultural Inflatable
- Equipment
- Circuit breaker
Discharge indicator
Front/Rear Throttle Handle
Fuse Holder
Grab handle
Hello - Brakes
- Electromagnetic 2.5 Nm with manual disengagement
- Front side height
- 650
