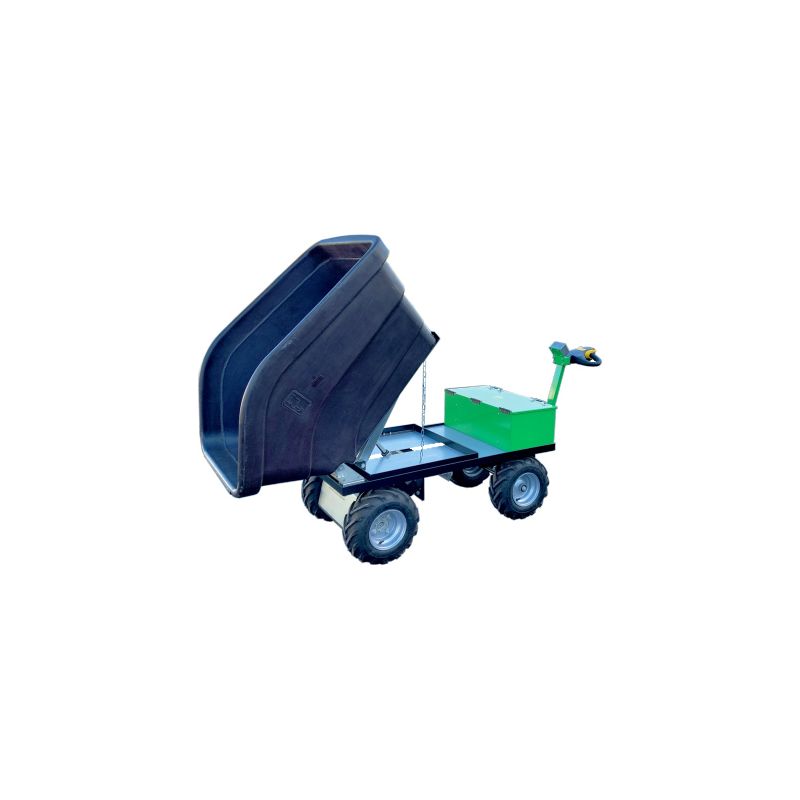

Wheelbarrow CT1A-600L

Data sheet

Load capacity

350 kg on flat ground

Length (mm)

3050

Usable Length (mm)

1120

Width (mm)

990

Height (mm)

1100

Tray height (mm)

480

Wheelbase (mm)

1020

Turning radius (mm)

1750

Type of driving

Accompanying

Engine

24V / 800 watts - direct current

Brake

6 Nm electromagnetic with manual disengagement

Transmission

Differential in oil bath

Power Electronics

CURTIS 24V / 130A dimmer

Batteries

2 Lead Batteries 12V / 70A (C5)

Battery weight

2 x 21 Kg

Battery dimensions (mm)

L.277 / W.168 / H.235

Charger

On-board with charge status indicator - 3 m long mains socket

Output (Voltage / Current)

24V/10A

Power

240 W

Input voltage

85V to 264V

Frequency

50 / 60 Hz

Chassis

Steel

Surface treatment

Sandblasting and powder coating

Drive wheels

2

Rims

Sheet metal

Type de pneus

Agricultural Inflatable

Front wheels

2 ball ring mounts

Front wheel dimensions

16x6,50-8

Type de pneu roues avant

Agricultural Inflatable

Equipment

Anti-crush
Circuit breaker with anti-breakage protection
Discharge indicator
Front/rear throttle valve for right- or left-handed
Hello
Horn
Key Contactor
Non-slip wooden floor
Protective fuse
Slow or fast speed switch

Performance

Battery life 8 to 16 hours depending on use
Front: 0 to 8 km/h - Rear: 0 to 5 km/h (Programmable)
Speed reduction and torque increase: 1/29 (6km/h)

Guarantees

1 year on motor, charger, batteries and electrical accessories
2 years on power electronics
5 years on the chassis

Weight of the vehicle with batteries

245
